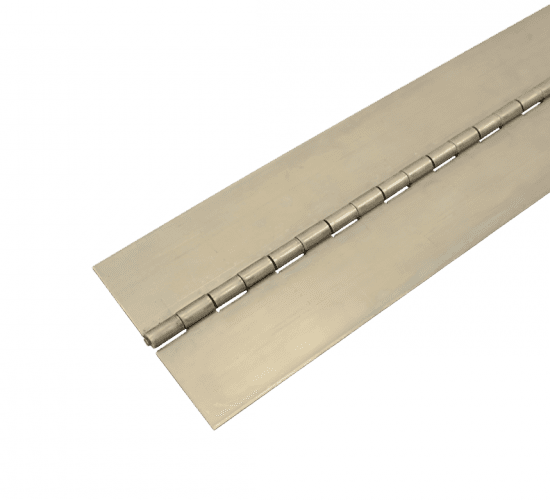

Stainless Steel Continuous Hinge: No Holes - No Finish
Stainless Steel Continous Hinges with no holes and no finish.
If you don't see the Piano Hinge you are looking for please call us and we will be happy to quote you.
In addition to our wide inventory selection, Western Hardware also can provide cost effective custom products. Please keep us in mind for the following services:
- Cut to Length
- Holes
- Swaging
- Reverse Assembly
- Plaiting
- Painting
For OEM, Distributor, and Wholesale Pricing Please call +1 (800) 483-8111.
| Part Number | KNUCKLE LENGTH | LENGTH (INCHES) | MATERIAL THICKNESS | OPEN WIDTH | PIN DIA |
|---|---|---|---|---|---|
| CSS12021-72.00 | 1 | 72 | 0.12 | 2 | 0.25 |
| CSS12021-96.00 | 1 | 96 | 0.12 | 2 | 0.25 |
| CSS12022-72.00 | 2 | 72 | 0.12 | 2 | 0.25 |
| CSS12022-96.00 | 2 | 96 | 0.12 | 2 | 0.25 |
| CSS12032-72.00 | 2 | 72 | 0.12 | 2 | 0.375 |
| CSS12032-96.00 | 2 | 96 | 0.12 | 2 | 0.375 |
| CSS13021-72.00 | 1 | 72 | 0.12 | 3 | 0.25 |
| CSS13021-96.00 | 1 | 96 | 0.12 | 3 | 0.25 |
| CSS13022-72.00 | 2 | 72 | 0.12 | 3 | 0.25 |
| CSS13022-96.00 | 2 | 96 | 0.12 | 3 | 0.25 |
| CSS13032-72.00 | 2 | 72 | 0.12 | 3 | 0.375 |
| CSS13032-96.00 | 2 | 96 | 0.12 | 3 | 0.375 |
| CSS14021-72.00 | 1 | 72 | 0.12 | 4 | 0.25 |
| CSS14021-96.00 | 1 | 96 | 0.12 | 4 | 0.25 |
| CSS14022-72.00 | 2 | 72 | 0.12 | 4 | 0.25 |
| CSS14022-96.00 | 2 | 96 | 0.12 | 4 | 0.25 |
| CSS14032-72.00 | 2 | 72 | 0.12 | 4 | 0.375 |
| CSS14032-96.00 | 2 | 96 | 0.12 | 4 | 0.375 |
| CSS30784-72.00 | 0.25 | 72 | 0.035 | 0.75 | 0.086 |
| CSS30784-96.00 | 0.25 | 96 | 0.035 | 0.75 | 0.086 |
| CSS31084-72.00 | 0.25 | 72 | 0.035 | 1.06 | 0.086 |
| CSS31084-96.00 | 0.25 | 96 | 0.035 | 1.06 | 0.086 |
| CSS31284-72.00 | 0.25 | 72 | 0.035 | 1.25 | 0.086 |
| CSS31284-96.00 | 0.25 | 96 | 0.035 | 1.25 | 0.086 |
| CSS31584-72.00 | 0.25 | 72 | 0.035 | 1.5 | 0.086 |
| CSS31584-96.00 | 0.25 | 96 | 0.035 | 1.5 | 0.086 |
| CSS32084-72.00 | 0.25 | 72 | 0.035 | 2 | 0.086 |
| CSS32084-96.00 | 0.25 | 96 | 0.035 | 2 | 0.086 |
| CSS41095-72.00 | 0.5 | 72 | 0.04 | 1.06 | 0.091 |
| CSS41095-96.00 | 0.5 | 96 | 0.04 | 1.06 | 0.091 |
| CSS41295-72.00 | 0.5 | 72 | 0.04 | 1.25 | 0.091 |
| CSS41295-96.00 | 0.5 | 96 | 0.04 | 1.25 | 0.091 |
| CSS41595-72.00 | 0.5 | 72 | 0.04 | 1.5 | 0.091 |
| CSS41595-96.00 | 0.5 | 96 | 0.04 | 1.5 | 0.091 |
| CSS42095-72.00 | 0.5 | 72 | 0.04 | 2 | 0.091 |
| CSS42095-96.00 | 0.5 | 96 | 0.04 | 2 | 0.091 |
| CSS51015-72.00 | 0.5 | 72 | 0.05 | 1.06 | 0.12 |
| CSS51015-96.00 | 0.5 | 96 | 0.05 | 1.06 | 0.12 |
| CSS51215-72.00 | 0.5 | 72 | 0.05 | 1.25 | 0.12 |
| CSS51215-96.00 | 0.5 | 96 | 0.05 | 1.25 | 0.12 |
| CSS51515-72.00 | 0.5 | 72 | 0.05 | 1.5 | 0.12 |
| CSS51515-96.00 | 0.5 | 96 | 0.05 | 1.5 | 0.12 |
| CSS51715-72.00 | 0.5 | 72 | 0.05 | 1.75 | 0.12 |
| CSS51715-96.00 | 0.5 | 96 | 0.05 | 1.75 | 0.12 |
| CSS52015-72.00 | 0.5 | 72 | 0.05 | 2 | 0.12 |
| CSS52015-96.00 | 0.5 | 96 | 0.05 | 2 | 0.12 |
| CSS52515-72.00 | 0.5 | 72 | 0.05 | 2.5 | 0.12 |
| CSS52515-96.00 | 0.5 | 96 | 0.05 | 2 | 0.12 |
| CSS53015-72.00 | 0.5 | 72 | 0.05 | 3 | 0.12 |
| CSS53015-96.00 | 0.5 | 96 | 0.05 | 3 | 0.12 |
| CSS61011-72.00 | 1 | 72 | 0.06 | 1.06 | 0.12 |
| CSS61011-96.00 | 1 | 96 | 0.06 | 1.06 | 0.12 |
| CSS61015-72.00 | 0.5 | 72 | 0.06 | 1.06 | 0.12 |
| CSS61015-96.00 | 0.5 | 96 | 0.06 | 1.06 | 0.12 |
| CSS61215-72.00 | 0.5 | 72 | 0.06 | 1.25 | 0.12 |
| CSS61215-96.00 | 0.5 | 96 | 0.06 | 1.25 | 0.12 |
| CSS61511-72.00 | 1 | 72 | 0.06 | 1.5 | 0.12 |
| CSS61511-96.00 | 1 | 96 | 0.06 | 1.5 | 0.12 |
| CSS61515-72.00 | 0.5 | 72 | 0.06 | 1.5 | 0.12 |
| CSS61515-96.00 | 0.5 | 96 | 0.06 | 1.5 | 0.12 |
| CSS61518-72.50 | 0.62 | 72.5 | 0.06 | 1.5 | 0.187 |
| CSS61518-96.25 | 0.62 | 96.25 | 0.06 | 1.5 | 0.187 |
| CSS61581-72.50 | 1 | 72.5 | 0.06 | 1.5 | 0.187 |
| CSS61581-96.25 | 1 | 96.25 | 0.06 | 1.5 | 0.187 |
| CSS61585-72.50 | 0.5 | 72.5 | 0.06 | 1.5 | 0.187 |
| CSS61585-96.25 | 0.5 | 96.25 | 0.06 | 1.5 | 0.187 |
| CSS61715-72.00 | 0.5 | 72 | 0.06 | 1.75 | 0.12 |
| CSS61715-96.00 | 0.5 | 96 | 0.06 | 1.75 | 0.12 |
| CSS61718-72.50 | 0.62 | 72.5 | 0.06 | 1.75 | 0.187 |
| CSS61718-96.25 | 0.62 | 96.25 | 0.06 | 1.75 | 0.187 |
| CSS62011-72.00 | 1 | 72 | 0.06 | 2 | 0.12 |
| CSS62011-96.00 | 1 | 96 | 0.06 | 2 | 0.12 |
| CSS62015-72.00 | 0.5 | 72 | 0.06 | 2 | 0.12 |
| CSS62015-96.00 | 0.5 | 96 | 0.06 | 2 | 0.12 |
| CSS62018-72.50 | 0.62 | 72.5 | 0.06 | 2 | 0.187 |
| CSS62018-96.25 | 0.62 | 96.25 | 0.06 | 2 | 0.187 |
| CSS62081-72.50 | 1 | 72.5 | 0.06 | 2 | 0.187 |
| CSS62081-96.25 | 1 | 96.25 | 0.06 | 2 | 0.187 |
| CSS62085-72.50 | 0.5 | 72.5 | 0.06 | 2 | 0.187 |
| CSS62085-96.25 | 0.5 | 96.25 | 0.06 | 2 | 0.187 |
| CSS62515-72.00 | 0.5 | 72 | 0.06 | 2.5 | 0.12 |
| CSS62515-96.00 | 0.5 | 96 | 0.06 | 2.5 | 0.12 |
| CSS62518-72.50 | 0.62 | 72.5 | 0.06 | 2.5 | 0.187 |
| CSS62518-96.25 | 0.62 | 96.25 | 0.06 | 2.5 | 0.187 |
| CSS63011-72.00 | 1 | 72 | 0.06 | 3 | 0.12 |
| CSS63011-96.00 | 1 | 96 | 0.06 | 3 | 0.12 |
| CSS63015-72.00 | 0.5 | 72 | 0.06 | 3 | 0.12 |
| CSS63015-96.00 | 0.5 | 72 | 0.06 | 3 | 0.12 |
| CSS63018-72.50 | 0.62 | 72.5 | 0.06 | 3 | 0.187 |
| CSS63018-96.25 | 0.62 | 96.25 | 0.06 | 3 | 0.187 |
| CSS63081-72.50 | 1 | 72.5 | 0.06 | 3 | 0.187 |
| CSS63081-96.25 | 1 | 96.25 | 0.06 | 3 | 0.187 |
| CSS63085-72.50 | 0.05 | 72.5 | 0.06 | 3 | 0.187 |
| CSS63085-96.25 | 0.5 | 96.25 | 0.06 | 3 | 0.187 |
| CSS63515-72.00 | 0.5 | 72 | 0.06 | 3.5 | 0.12 |
| CSS63515-96.00 | 0.5 | 96 | 0.06 | 3.5 | 0.12 |
| CSS64011-72.00 | 1 | 72 | 0.06 | 4 | 0.12 |
| CSS64011-96.00 | 1 | 96 | 0.06 | 4 | 0.12 |
| CSS64015-72.00 | 0.5 | 72 | 0.06 | 4 | 0.12 |
| CSS64015-96.00 | 0.5 | 96 | 0.06 | 4 | 0.12 |
| CSS64018-72.50 | 0.62 | 72.5 | 0.06 | 4 | 0.187 |
| CSS64018-96.25 | 0.62 | 96.25 | 0.06 | 4 | 0.187 |
| CSS64081-72.50 | 1 | 72.5 | 0.06 | 4 | 0.187 |
| CSS64081-96.25 | 1 | 96.25 | 0.06 | 4 | 0.187 |
| CSS64085-72.50 | 0.5 | 72.5 | 0.06 | 4 | 0.187 |
| CSS64085-96.25 | 0.5 | 96.25 | 0.06 | 4 | 0.187 |
| CSS71521-72.00 | 1 | 72 | 0.07 | 1.5 | 0.25 |
| CSS71521-96.00 | 1 | 96 | 0.07 | 1.5 | 0.25 |
| CSS72021-72.00 | 1 | 72 | 0.07 | 2 | 0.25 |
| CSS72021-96.00 | 1 | 96 | 0.07 | 2 | 0.25 |
| CSS72521-72.00 | 1 | 72 | 0.07 | 2.5 | 0.25 |
| CSS72521-96.00 | 1 | 96 | 0.07 | 2.5 | 0.25 |
| CSS73021-72.00 | 1 | 72 | 0.07 | 3 | 0.25 |
| CSS73021-96.00 | 1 | 96 | 0.07 | 3 | 0.25 |
| CSS73521-72.00 | 1 | 72 | 0.07 | 3.5 | 0.25 |
| CSS73521-96.00 | 1 | 96 | 0.07 | 3.5 | 0.25 |
| CSS74021-72.00 | 1 | 72 | 0.07 | 4 | 0.25 |
| CSS74021-96.00 | 1 | 96 | 0.07 | 4 | 0.25 |
| CSS91521-72.00 | 1 | 72 | 0.09 | 1.5 | 0.25 |
| CSS91521-96.00 | 1 | 96 | 0.09 | 1.5 | 0.25 |
| CSS91522-72.00 | 2 | 72 | 0.09 | 1.5 | 0.25 |
| CSS91522-96.00 | 2 | 96 | 0.09 | 1.5 | 0.25 |
| CSS92021-72.00 | 1 | 72 | 0.09 | 2 | 0.25 |
| CSS92021-96.00 | 1 | 96 | 0.09 | 2 | 0.25 |
| CSS92022-72.00 | 2 | 72 | 0.09 | 2 | 0.25 |
| CSS92022-96.00 | 2 | 96 | 0.09 | 2 | 0.25 |
| CSS93021-72.00 | 1 | 72 | 0.09 | 3 | 0.25 |
| CSS93021-96.00 | 1 | 96 | 0.09 | 3 | 0.25 |
| CSS93022-72.00 | 2 | 72 | 0.09 | 3 | 0.25 |
| CSS93022-96.00 | 2 | 96 | 0.09 | 3 | 0.25 |
| CSS94021-72.00 | 1 | 72 | 0.09 | 4 | 0.25 |
| CSS94021-96.00 | 1 | 96 | 0.09 | 4 | 0.25 |
| CSS94022-72.00 | 2 | 72 | 0.09 | 4 | 0.25 |
| CSS94022-96.00 | 2 | 96 | 0.09 | 4 | 0.25 |
For OEM / Distributor pricing please call +1 (800) 483-8111.
