WHCCRCFB-GMH

$17.99

Durable 45 degree CRS steel rivet-on fuel bucket with zinc-plated finish for corrosion resistance. Mounts via four .190 diameter holes (rivets not included). Reliable choice for demanding truck environments. Part #: WHCCRCFB-GMH

Category:
45 degree CRS steel rivet-on fuel bucket Part WHCCRCFB-GMH zinc plated front view
45 degree CRS steel rivet-on fuel bucket Part WHCCRCFB-GMH rear mounting holes view

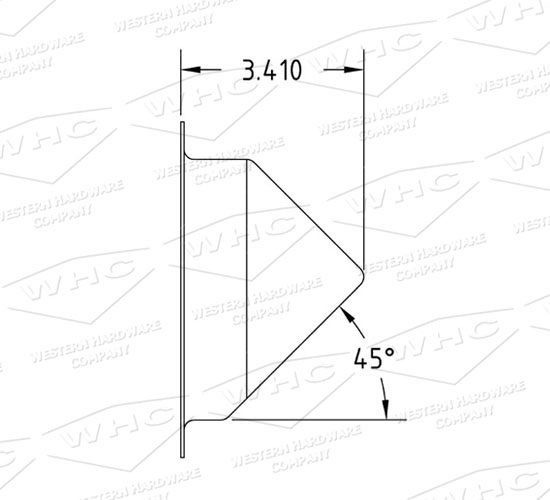

Technical drawing of a conical shape with a 45° angle and 3.410 unit height.

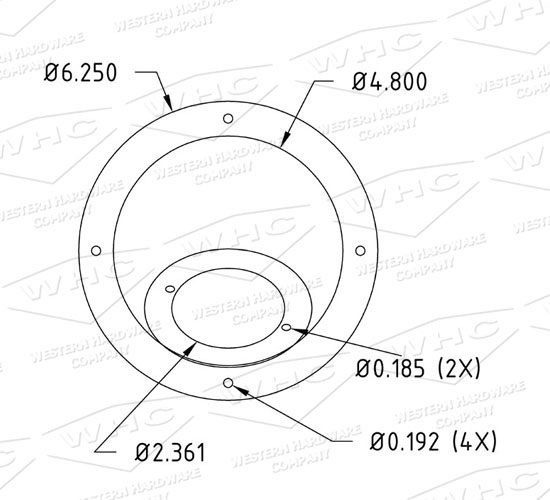

Technical drawing of concentric circular flanges with dimensions and hole specifications.

Description

The 45 degree CRS steel rivet-on fuel bucket (Part #: WHCCRCFB-GMH, also known as a fuel bezel or fuel filler cup) from Western Hardware is engineered for reliable, cost-effective performance on flat bed and service body trucks. Constructed from corrosion-resistant steel (CRS) with a tough zinc-plated finish, it mounts securely via four .190 diameter rivet holes (rivets not included). Perfect for heavy-duty use with the versatile 45 degree angle for better fuel neck alignment.

Key Specifications:

  • Part Number: WHCCRCFB-GMH
  • Angle: 45 Degree
  • Mounting: Rivet-on (.190 Diameter Hole x 4)
  • Material: Zinc Plated CRS Steel
  • Rivets: Not included

For OEM, distributor, and wholesale pricing, please call 1-800-483-8111.
